PRODUCT REQUEST

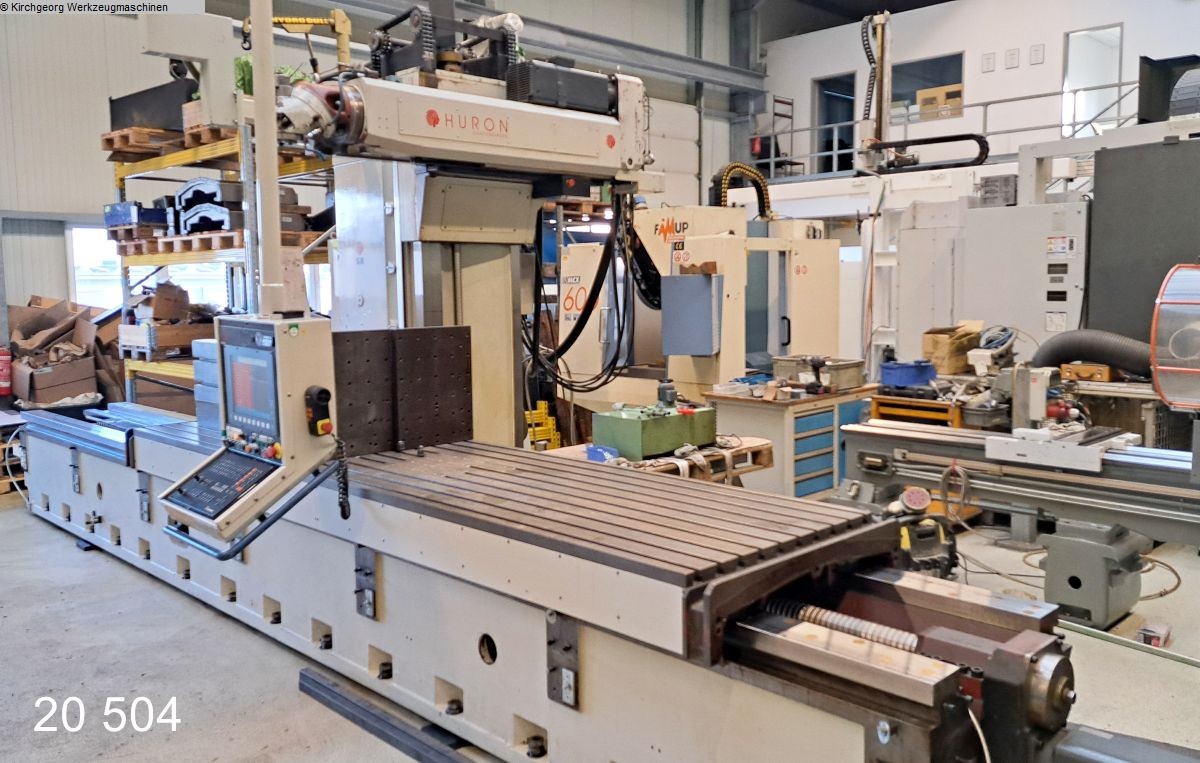

HURON - Bed Type Milling Machine - Universal
Print
PRODUCT REQUEST
Offer details
  • state
    used
  • Stock-No.
    1072-20504
  • Type of machine
    Bed Type Milling Machine
  • Make
    HURON
  • Type
    SXB 935
  • Year of manufacture
    1994
  • Type of control
    CNC
  • Control name
    Heidenhain TNC 415B
  • Storage location
    61137 Schöneck
  • Country of origin
    Frankreich
  • Delivery time
    immediately
  • Freight basis
    ex stock Schöneck, free loaded
  • Price
    on request

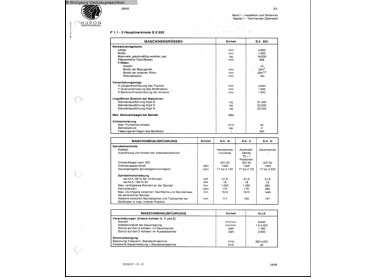

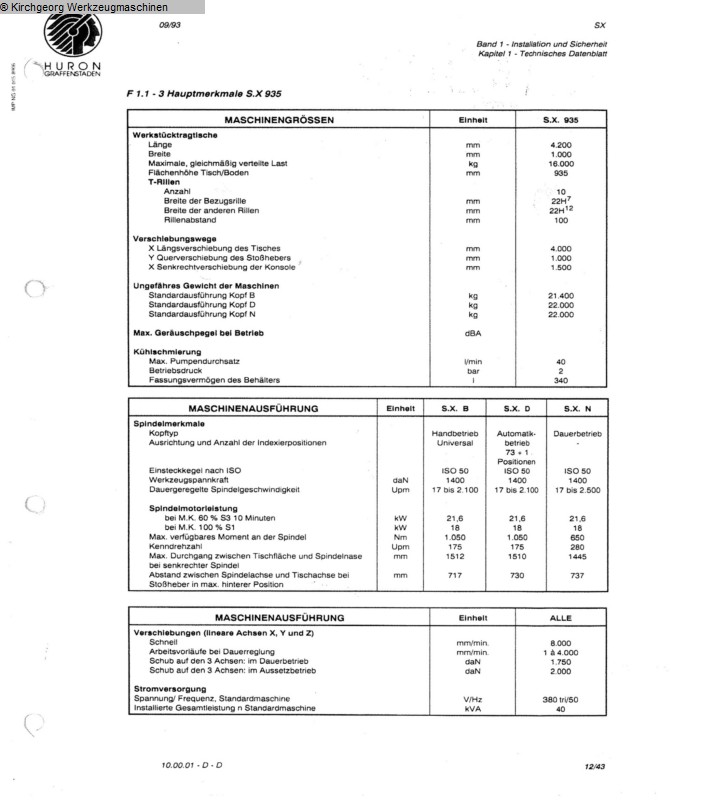

Technical details
  • x-travel
    4000 mm
  • y-travel
    1000 mm
  • z-travel
    1500 mm
  • control
    Heidenhain TNC 415B
  • table-size
    4200 x 1000 mm
  • table load
    16 t
  • spindle turning speed range
    max. 2100 U/min
  • spindle taper ISO
    50
  • power capacity - milling spindle
    18 kW
  • distance spindle /table
    1445 mm
  • feed speeds
    max. 4000 mm/min
  • rapid traverse
    8 m/min
  • voltage
    400 V
  • electric cabinet
    1,5 x 0,6 x 1,80 m
  • total power requirement
    40 kW
  • weight of the machine ca.
    20,5 t
  • dimensions of the machine ca.
    9,80 x 3,00 x 3,60 m
additional information
  • - Serial No.:9410160
  • Machine is in excellent condition!
  • Price ex stock Schöneck, free loaded
  • on truck without dismantling of machine
  • table and column! Machine can be reduced
  • to transport dimensions of LxWxH
  • 8,10 x 3,00 x 3,60m. Fully covered
  • transport of this size is available but
  • requires special permit from each state
  • crossed during transport. Dismantling
  • of machine table and column is
  • possible at extra charge!
